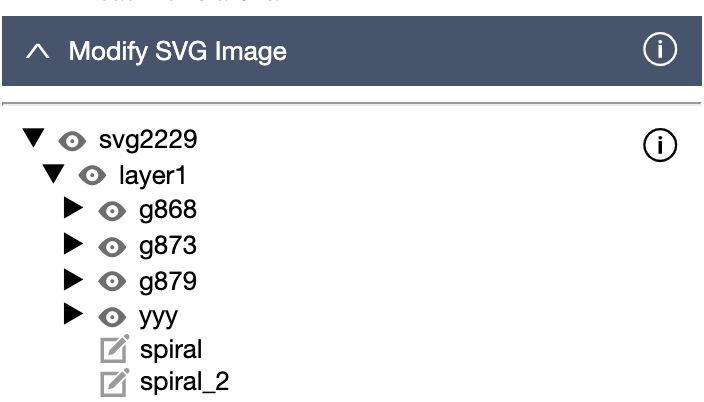

When an SVG image has been loaded into the Inovista Animator, a tree
structure of the elements contained within the image is presented in the
editor panel on the left hand side of the Animator below the 'Load Image'
section. The 'Modify SVG Image' section appears above the tree.
The following aspects of an element in the image can be edited:
Drag/Reorder Elements in Tree: The image elements can be
dragged to different locations within the tree. Elements lower down the
tree will be displayed above elements above it. Elements can also be
dragged into groups and groups can be dragged into other groups.
Move/Scale/Rotate: The initial location, scale and rotation
can be updated by manipulating a copy of the element placed over the SVG
image.
Change Id: Change to id of an element, typically to make it
recognizable when editing.
Contain in a Group: Add a group to the SVG Image at the
current level and place the image within it.
Reset to Original State: Remove any edits made to the element
and revert to its original state. Note that this is only available when
an element has been changed.
Remove Group: Remove the selected Group. Note that this is
only available when the group is empty.
N.B.Modify is only available for elements in the image NOT the whole
image.

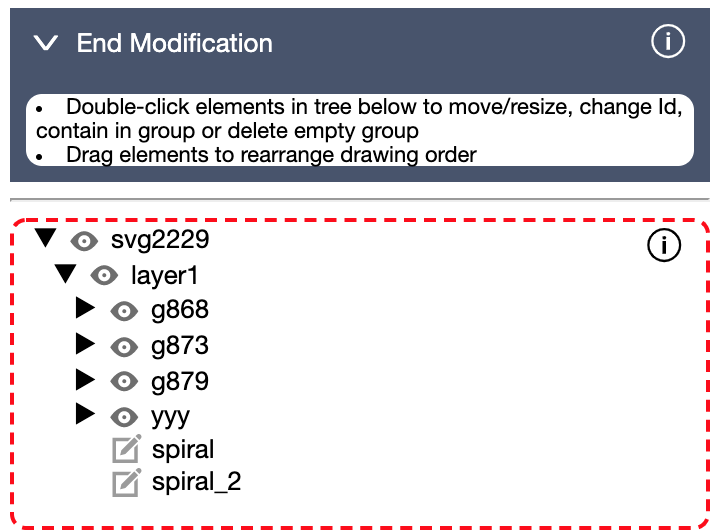

Clicking on the 'Modify SVG Image' tab will allow elements in the tree to be
edited. A red dotted line around the element tree will indicate that the
tree is in edit mode. Clicking again will end edit mode. N.B. The
'edit-->' option used to create a new transition is turned off in edit
mode.

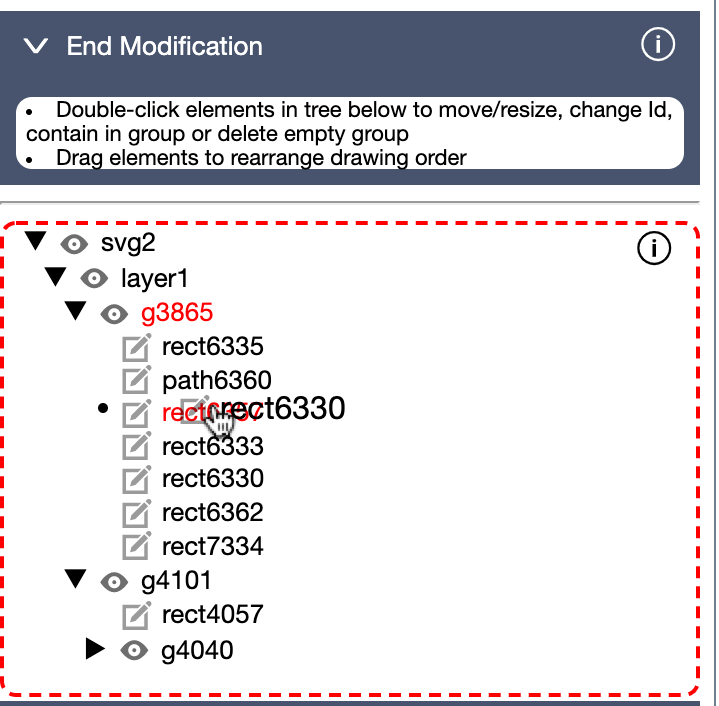

Element Reorder
Drag an element from one location to another. An element will be shown above
other element higher up the tree. Elements can be dragged into groups and
groups can be dragged into other groups. Note that to drag into a group, the
group icon must be open (pointing downwards). To undo any reordered element
changes, use the 'undo' icon on the toolbar.
Element Editing

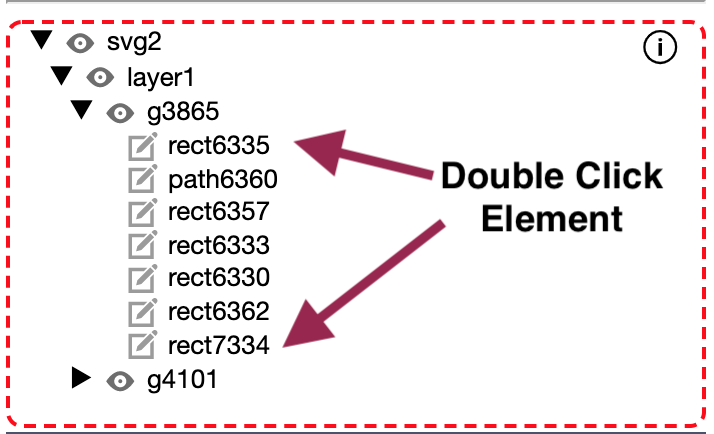

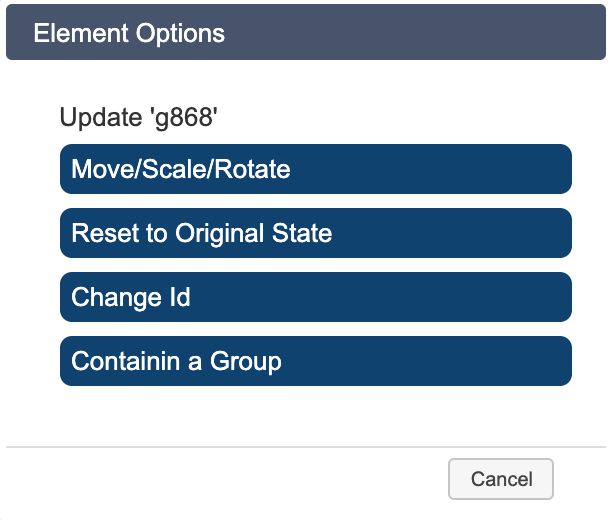

Double Click an element in the tree to present a popup
menu, the available options on the menu will be dependent on the element
type and whether any changes have been made. The click on the required
option.
Move/Scale/Rotate
Select this option to change how the element will be initialized when
the image is first loaded.This will make a copy of the element that is to
be edited. To move the image, drag it to the new location. To rotate the
image, use one of the circular icons at the corner of the image. To resize
the image, use the pointer icons at the corner of the image.
To save the edit, select the 'check' icon on the toolbar above the image
or alternatively wait a short time after completing the edit and click on
the edited element.
To stop editing without saving, select the 'X' icon.

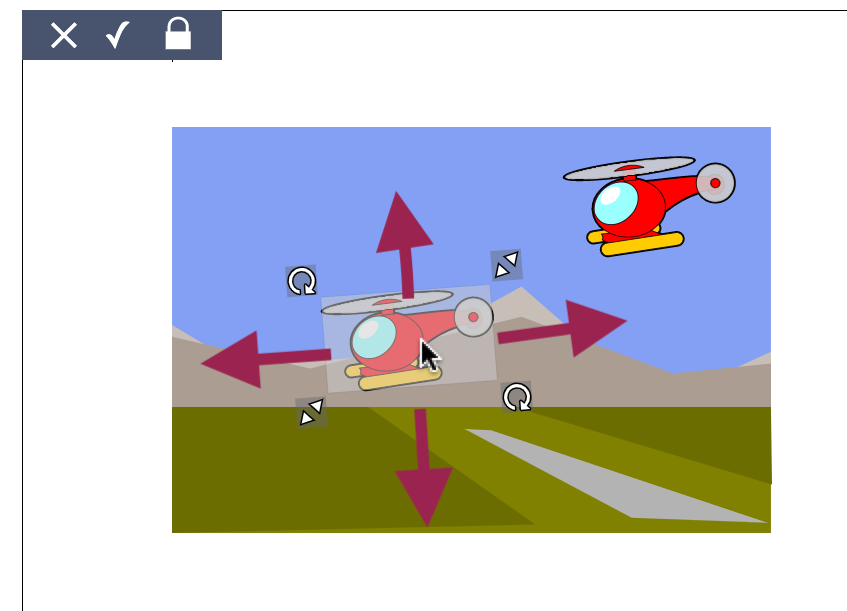

Move Image

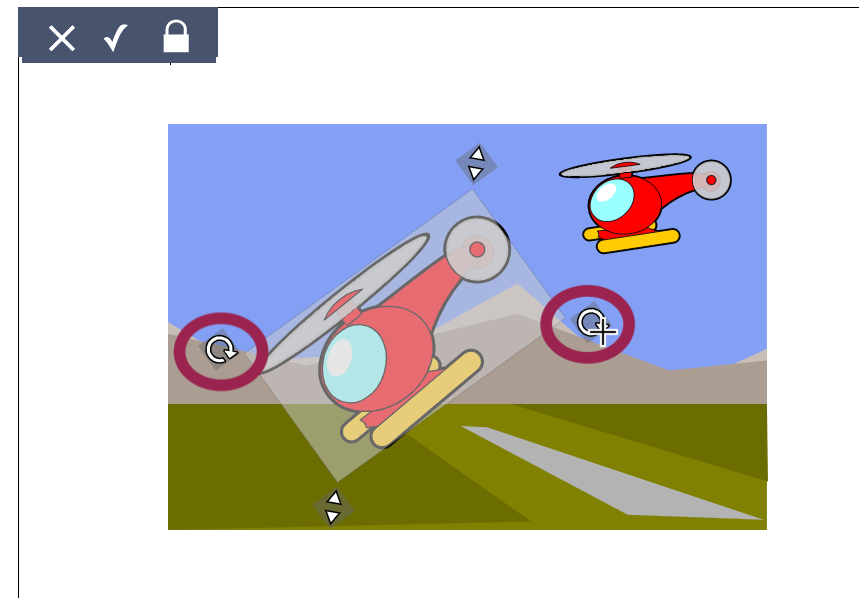

Rotate Image

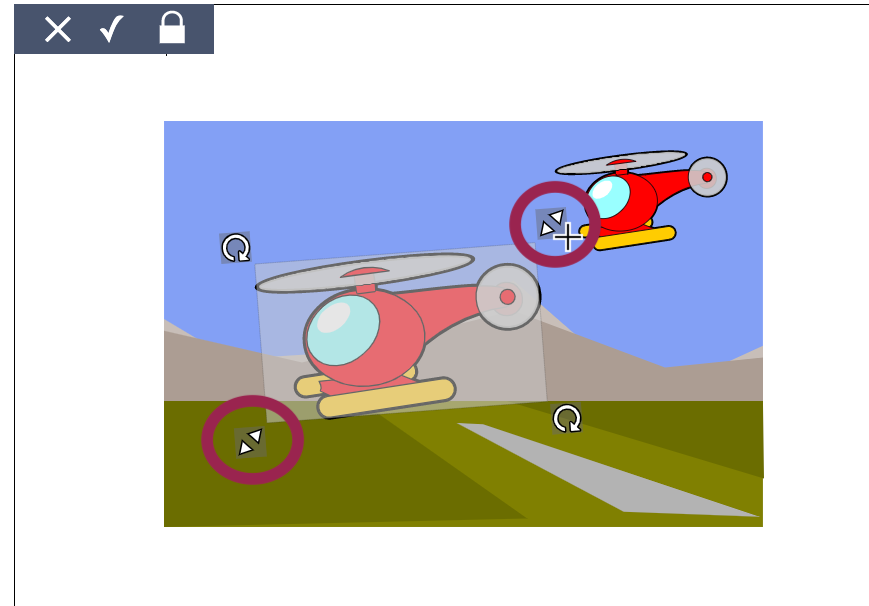

Scale Image
When scaling, selecting the closed lock icon will force the image to be
scaled proportionately. Unlocking will allow different scaling for the x and
y axes.

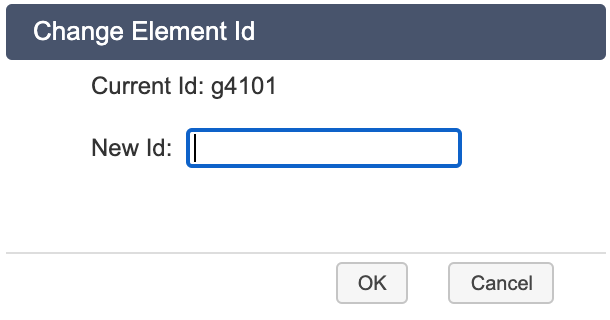

Change Id
To change the Id of an element, select this option, enter the new id in the
popup dialog and click 'OK'.

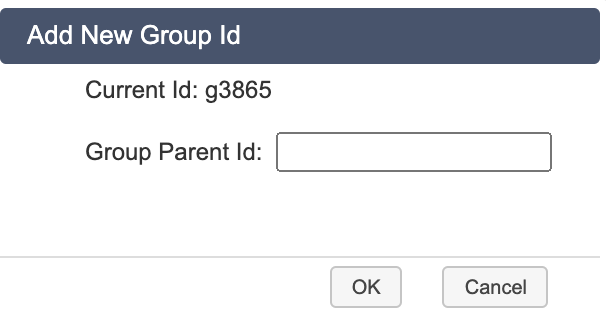

Contain in a Group
To place a element into a new group, select this option, enter the name of
the new group in the popup dialog and select 'OK'. Groups are useful, for
example, when creating transitions that run in different time scales.
Reset to Original State
This option is available for elements that have been edited and saved.
Select this to return the element to its original state when loaded.
Remove Group
This option is available for empty groups. Select this to delete the empty
group.
Remove Element
This option is available only when an image has been imported or loaded via the Custom
Animation option as an element. Select 'Remove Element' to delete that element.
