In the Combined and Curve Transitions, the 'Display on Image to Edit'
option is available. This allows a user to define the transition for the
element or node by dragging it to a new location, by scaling it to a new
size or by rotating it to a new angle.
N.B. For Curve transitions, only movement to a new location is
available. Additionally, the option is not available for the whole image
only elements within the image.
On clicking the 'Display on Image to Edit' button, the timeline will be set
to the starting time of the current transition and the image animation will
be frozen to that time. A semi-transparent copy of the element will be
placed over the element to be edited. Drag the element copy to the location
to image will move to over the duration of this current transition.
To save the edit, select the 'check' icon on the toolbar above the image
or alternatively wait a short time after completing the edit and click on
the edited element.
To stop editing without saving, select the 'X' icon.
Movement
In the transition panel on the left, the available move options are 'Move
Pixels' and 'Goto Pixel'. The other options are ignored. Values can be
manually entered in the Movement fields. This will update the copied element
location on the image.
Scale
Drag the resize icons on either of the two corners of the element to resize.
In the transition panel on the left, scale values can be entered manually.
When scaling, selecting the closed lock icon will force the image to be
scaled proportionately. Unlocking will allow different scaling for the x and
y axes.

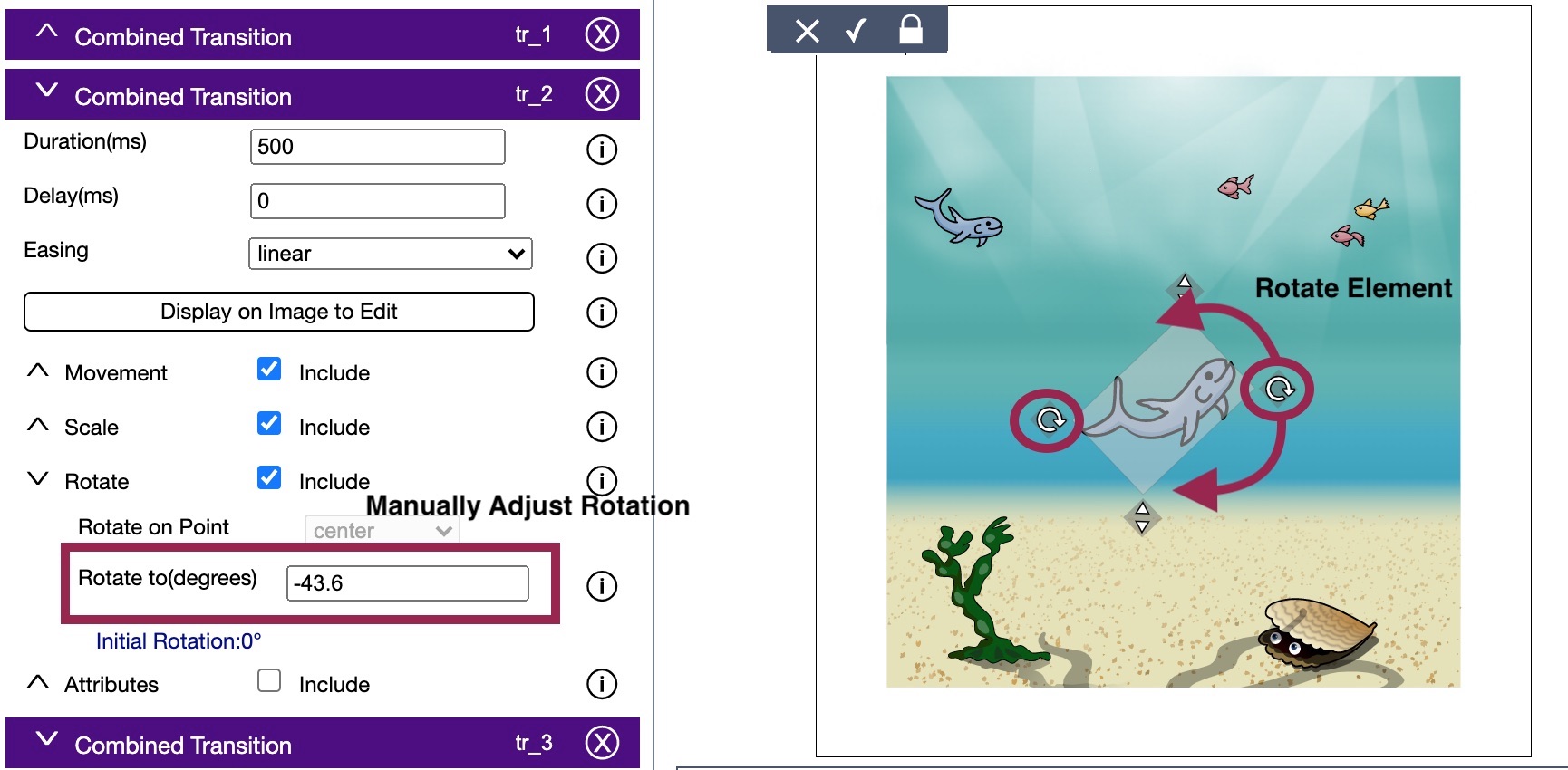

Rotate
Drag the rotate icons on either of the two corners of the element to rotate.
In the transition panel on the left, the rotation to angle value can be
entered manually.
